Oxford Midi 180 Hoist Electric Lift with Manual Opening Legs

Brand
Product Code
OXF-MIDIE-UK
The Oxford® Midi 180 is a mid size patient lifting hoist designed for the homecare market.It is suitable for use at home and in care homes and has a safe working load of 180 kg. This model is the Midi 180 hoist with electric lift and man... read more
Price
€2,429.25 €1,975.00
Lead Time
5 - 7 Working Days
Free delivery across Ireland on orders over €250
Any questions? Just Ask

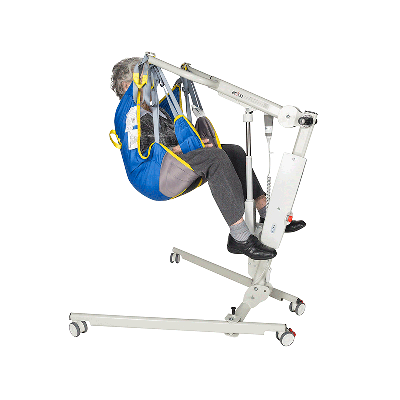

The Oxford Midi 180 is a mid size patient lifting hoist designed for the homecare market. It is suitable for use at home and in care homes and has a safe working load of 180 kg. This model is the Midi 180 hoist with electric lift and manual leg opening.  The Oxford® Midi 180 has become the ‘gold standard’ in homecare, offering surprising performance for a hoist of its size. The Midi is the perfect solution for both community and nursing environments, whilst being sympathetic to the space constraints it might encounter.

  • Smart™ Monitor, a state-of-the-art, on-board diagnostic tool providing invaluable operational and service data for both the user and service engineer.
  • High Grade Tente® Castors, a highly durable design that aids manoeuvrability over the majority of floor surfaces. The rear castors incorporate an easy to operate brake pedal.
  • Comes with Standard spreader bar. Small & Large spreader bars available on request.
  • Over-sized Push Handle for Optimised position and ergonomically designed for ease of manoeuvrability.
  • Emergency Descent which enables manually operated emergency descent function for increased patient safety.
  • Foot Pedal Leg Adjustment. The ergonomically designed foot pedal is perfectly positioned to ensure the user’s foot remains level during operation, helping to avoid risk of injury

Key features

  • Safe working load 180kg / 27st / 397lbs
  • SmartTM Monitor diagnostic and service controls as standard
  • Foot pedal leg opening mechanism with latch/lock functionality
  • Electric leg option available
  • High-grade Tente® castors for easy manoeuvrability
  • Detachable battery pack and desktop charger
  • Optional Class III digital weigh-scale
  • Available in electric or hydraulic versions

 Specification

  • Safe Working Load 180kg / 28st
  • Length 1225 mm
  • Maximum Overall Height 1840 mm
  • Minimum Overall Height 1240 mm
  • Maximum Spreader Bar Height 1660 mm
  • Minimum Spreader Bar Height 525 mm
  • Spreader Bar Height at Maximum Reach 1060 mm
  • Spreader Bar Reach at Maximum Height 420 mm
  • Spreader Bar Reach at Minimum Height 440 mm
  • Maximum Reach 656 mm
  • Turning Radius 1235 mm
  • Legs Open - External Width 1170 mm
  • Legs Open - Internal Width 1070 mm
  • Legs Closed - External Width 600 mm
  • Legs Closed - Internal Width 540 mm
  • Overall Height of Legs 100 mm
  • Ground Clearance 25 mm
  • Front Twin Castors 75 mm
  • Rear Braked Castors 100 mm
  • Mast and Boom Assembly Weight 5 kg
  • Base Assembly Weight 5 kg
  • Total Weight 32 kg
